X-Ray Machine

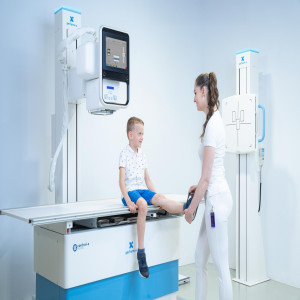

Perform-X F200 Auto-Tracking Radiographic System The F200 floor-mounted system increases examination precision and throughput with its auto-tracking functionality between the tube assembly and, respectively, the wall stand and the table receptor. KEY FEATURES - F200 1-way (optional 2-way) vertical auto-tracking between tube assembly and wall stand receptor (receptor: master, tube: slave) 2-way vertical auto-tracking between tube assembly and table receptor (dynamic master/slave function) 1-way auto-centering between tube assembly and table receptor (tube: master, receptor: slave) motorized vertical movement of X-ray tube assembly (with manual override) manual horizontal movement of tube stand manual tube rotation on the horizontal axis motorized Phoenix 2 elevating radiographic table manual vertical movement of wall stand motorized table receptor auto-centering (with manual override) longitudinal and vertical SID measurement optional manual column rotation optional manual transverse tube arm movement optional manual or motorized receptor tilting for wall stand We also offer a choice of components such as digital panels, grids, X-ray tubes, collimators, AEC chambers, DAP meters, etc.
